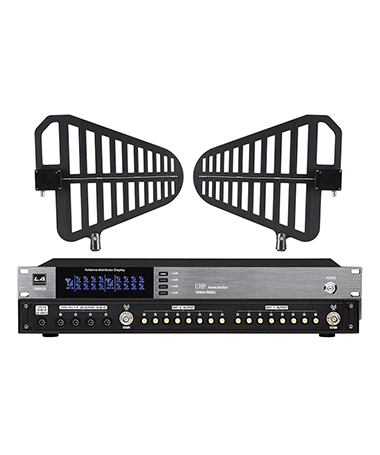

1. Antenna splitter boot function introduction

(1) Press and hold the power button to turn on/off.

(2) When the antenna splitter is turned on, the power output interface will output 12V 1Apower.

2. Antenna distributor sensitivity adjustment Press the sensitivity adjustment button to select the corresponding receiving sensitivity.

3. Antenna input/output display function

(1) When using our fan antenna and true diversity receiver, connect the sector antenna/receiver

 distribution line, the antenna distributor will automatically detect whether it is connected/disconnected,and the display will show “ ”.

(2) Without using our fan antenna and true diversity receiver, the antenna splitter will not automatically

detect if it is connected/disconnected, and the display shows “ ”. The function of the antenna splitteris still valid.

FEATURES

1. Adopt wide-band field effect amplification tube, which is smaller than the traditional RF  amplification tube, with larger gain and less noise;

2. The relay controls the output power, which can easily cut off the power supply of all receivers at one time;

3. Adjustable step-by-step amplification, the amplification gain can be selected according to the length of the RF extension, so that the amplification gain is not too large, causing the receiver to be frequency-frequency and interference;

4. Automatically detect the open and short circuit of the input and output RF cable, thus effectively preventing the connection line from being unreasonable, causing the signal of  the receiver signal to be unstable;

5. Two RF model input interfaces, respectively output two 8-way interfaces;

SYSTEM TECHNICAL INDICATORS

Input power: 12V/5A

Output power supply: 12V/1A

Display: VALCD

Frequency range: 500-900MHz

In-band toggle: ±3dB

Amplification gain: adjustable step

amplification 3dB, 6dB, 9dB, 12dB

2. Antenna distributor sensitivity adjustment Press the sensitivity adjustment button to select the corresponding receiving sensitivity.

3. Antenna input/output display function

(1) When using our fan antenna and true diversity receiver, connect the sector antenna/receiver

 distribution line, the antenna distributor will automatically detect whether it is connected/disconnected,

and the display will show “ ”.

(2) Without using our fan antenna and true diversity receiver, the antenna splitter will not automatically detect if it is connected/disconnected, and the display shows “ ”. The function of the antenna splitter is still valid.

1. Antenna splitter boot function introduction

(1) Press and hold the power button to turn on/off.

(2) When the antenna splitter is turned on, the power output interface will output 12V 1Apower.
