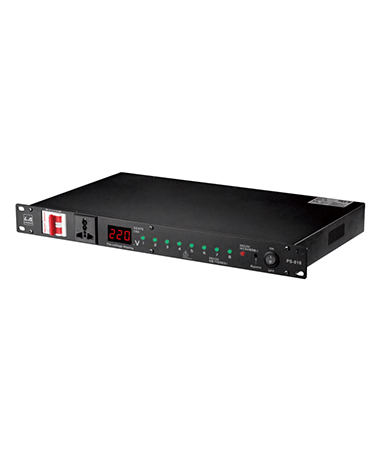

POWER SEQUENCER

Product Model：PS818

High frequency：

Low frequency：

This product is suitable for audio engineering, TV broadcasting systems, conference rooms and power facilities where a power distribution system is required in sequence.

The power sequencer can start the equipment one by one from the front stage to the back stage, effectively and uniformly manage and control various types of power equipment, avoid human error, and thus ensure the stability of the power system and the ease of operation.

This product is suitable for audio engineering, TV broadcasting systems, conference rooms and power facilities where a power distribution system is required in sequence.

ne-key pass-through function, applied to different devices

Equipped with output LED voltage real-time display

A total of 10 controllable 8-way power output, each up to 30A

ontrollable output delay time is 1S

Technical parameters

Panel color: silver black2 Power input conditions (single-phase 3-wire): AC90-2

Power input conditions (single-phase 3-wire): AC90-260V50-60HZ two-phase (three wires: zero, fire, ground)

Number of channels: 8-way universal socket relay controlled and 2-way universal socket direct output

Relay controlled output maximum single-channel power/total power (reactive power): 5000W/8000W maximum reactive power

Output power socket specifications: flame-retardant ABS material, maximum current of 13A, brass material,standard socket

Functional features

1. Open in sequence and close in reverse order

2. PASS key can open all channels at the same time

3. Precise voltage display

Interval time of each switch/timing time: 1 secondOutput relay contact current: 30A277VAC

Circuit board specifications: double-sided fiberboard, main power supply wiring is thickened and thickened twice

Power supply specifications: built-in switching power supply is suitable for global voltage AC90-260V 50-60HZ

Main cable specifications: 3*4 square cable, total length is 1.0 meter (without power input plug)

Opening type: square boat switch

Function display voltage display meter type: red digital tube display voltage meter

Stacking cascade function: no

Power purification function (EMI professional grid filter): no (optional single or each channel with filter)

Outer packaging size (WxHxD): 540mmx110mmx335mm (non-stan
