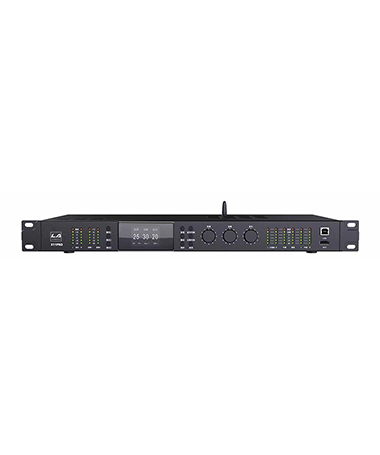

POWER SEQUENCER
Product Model：X11PRO
High frequency：
Low frequency：
Maximum music input level 7Vrms Maximum output level 7Vrms
Maximum microphone input level 730mVrms
Microphone signal-to-noise ratio 121dB Music signal-to-noise ratio: 118dB
Input voltage ~220V 50HZ
Gross weight: 4.5kg Net weight: 3.9kg
Dimensions (height x width x depth) 485mm x220mm x44.5mm
1. All channels support precise compression + limiting to protect the speakers to the maximum extent
2. Visual compression, dynamic equalization processing, convenient and fast
3. Music delay function: match the synchronization problem of video and audio
4. Independent output channel adjustment,
5. Ultra-low/mid-range functions can be configured arbitrarily
6. The best pre-stage with signal-to-noise ratio 121dB (microphone), 118dB (music).
7. The latest version of DSP automatic source selection, optical fiber coaxial input (customizable Bluetooth), pitch change, 6 channels independent adjustment
8. The preamplifier with the highest parameter index so far (phase, frequency response, the only preamplifier that can make a straight curve)
9. The most powerful preamplifier so far (music 15PEQ + dual microphone 20PEQ + 5 reverberation)
10. Driver-free USB direct connection, driver-free WIFI wireless control, solve all connection problems
11. Unique 5 reverberation technology, powerful surround and modification, let you sing without worry
12. Software online password function
13. Unlimited power-on times lock function
Music part
1. Music delay: 150ms
2. Two sets of analog input + optical fiber + coaxial input, automatic switching
3. Unique 3-band dynamic equalization
4. 15-band parametric equalization, professional high and low pass pressure limiter
5. Positive and negative 7-order pitch change
Microphone part
1. Digital noise gate
2. Unique 4-level howling suppression
3. Two groups of independent adjustment
4. 20-band parametric equalization, professional high and low pass pressure limiter
5. Microphone input pressure limiter
Effect part
1. Unique 5 reverberation technology STEREO ECHO+STEREO ECHO+STEREO REVERB
2. Each effect has 7-band parametric equalization, professional high and low pass pressure limiter
Output channel
1. 6 channels are independently adjusted
2. Each channel has an independent mute function
3. Delay 50ms
4. Each channel has an independent frequency division function
5. 10-band parametric equalization
With set software
1. Unique spectrum analysis function of the software
2. Humanized interface design, more in line with operation requirements
