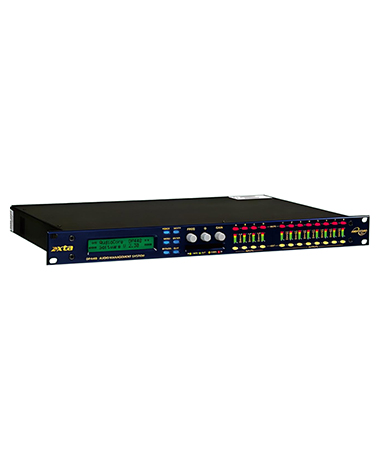

XTA AUDIO DSP PROCESSOR
Product Model：PD448
High frequency：
Low frequency：
Excellent sound quality: High-precision 96KHz/24bit data processing can achieve excellent 116dB dynamic range and high-quality
sound quality.
Each output channelis equipped with an independent high-performance limiter, and the attack time and release time can be set
automatically or manually.
Each output has a variable high-pass and low-pass filter, and its filter slope can be selected from 6, 12,18, 24 or 48dB octaves.The
crossover filter curve can be selected from Bessel, Butterworth or Linkwitz, Reilly response type, and the separately controlled high-
pass and low-pass filter functions can be used in an uneven frequency division method.
Each output channel is equipped with a delay setting of up to 65oms, and its adjustment accuracy is 2.6μs (converted to distance,
less than 1 mm).
Equipped with AES/EBU digital input and output interfaces for digital system connection
Dp4 series uses switching power supply, which can automatically adapt to 60-250v 50/60Hz voltage
