POWER SEQUENCER

Product Model：SC-555

High frequency：

Low frequency：

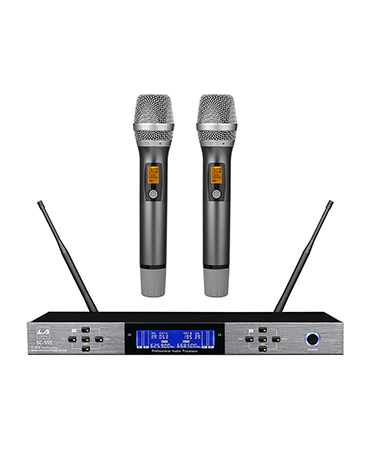

The microphone will automatically mute within 3 seconds after leaving the hand and can be placed at any angle),It will automatically enter the standby state after 5 minutes, and automatically Shut down and completely cut off the power after 15 minutes. It is a new concept of intelligent and automated wireless microphone New audio circuit architecture, delicate treble, strong mid-low frequency,Perfect expressiveness. Superior dynamic tracking capability enables easy sound pickup and playback at long/near distances.

APPLICATION AREA

Electronic music party rooms, business clubs, nightclubs, bars, high-end KTV rooms, star-rated hotels

Technical parameters TECHNICALPARAMETER

System specifications IF frequency: First IF: 110MHz Second IF: 10.7MHZ

System indicators RF range: 640.00-690.00MHz

Antenna interface: TNC socket

Available bandwidth: 30MHz per channel (60MHz in total) Display mode: LCD

Modulation mode: FM frequency modulation

Sensitivity: -100dBm (40dBS/N)

Number of channels: Infrared automatic frequency matching 200 channels

Spurious suppression: >80dB

Operating temperature: -18 degrees Celsius to 50 degrees Celsius

Audio output: Unbalanced: +4dB (1.25V)/5KΩ

Squelch mode: automatic noise detection and digital ID code squelch

Balance: +10dB (1.5V) / 600Q Power supply voltage: DC12V

Offset: 45KHz dynamic range: >110dB

Power supply current: 450mA

Audio response: 60Hz-18KHz optional handheld

Transmitter

Transmitter indicators: (908 transmission)

Oscillation mode: PLL phase-locked loop

Output power: 3dBm-10dBm (L0/HI conversion)

Battery: 2" 1.5V 5

Battery current <100mA (HF), <80mA (LF)

Use time (alkaline battery): about 8 hours at high power,

Receiver

Comprehensive signal-to-noise ratio: >105dB

Comprehensive distortion: <0.5%

Receiving mode: secondary frequency superheterodyne, dual-tuning reception

Oscillation mode: PLL phase-locked loo
